Grove GMK5275

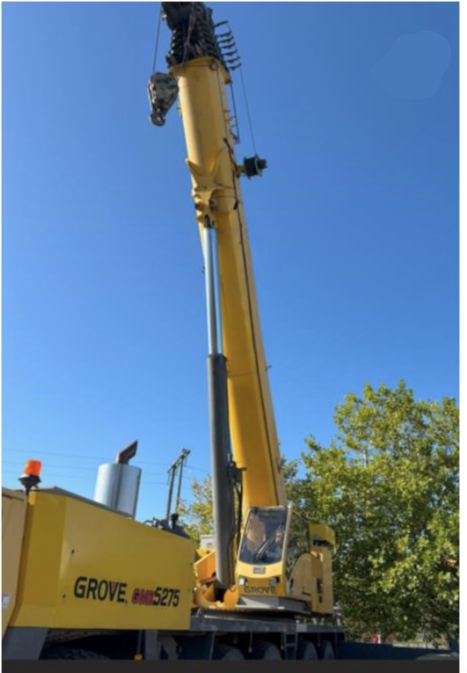

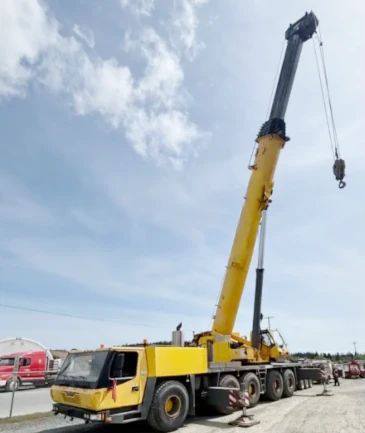

2007 Grove GMK5275, 275 Tons, All Terrain Crane; CranesList ID: 1023,

  • 44' - 223' Seven Section, Full-Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave,
  • 39' - 69’ Bi-fold Lattice Swing Away Extension (Jib) Hydraulically Off-settable (5° - 40°),
  • 2 x 26' Jib inserts for a total of 121' of Jib,
  • Cummins 24 Valve Diesel Engine (Up),

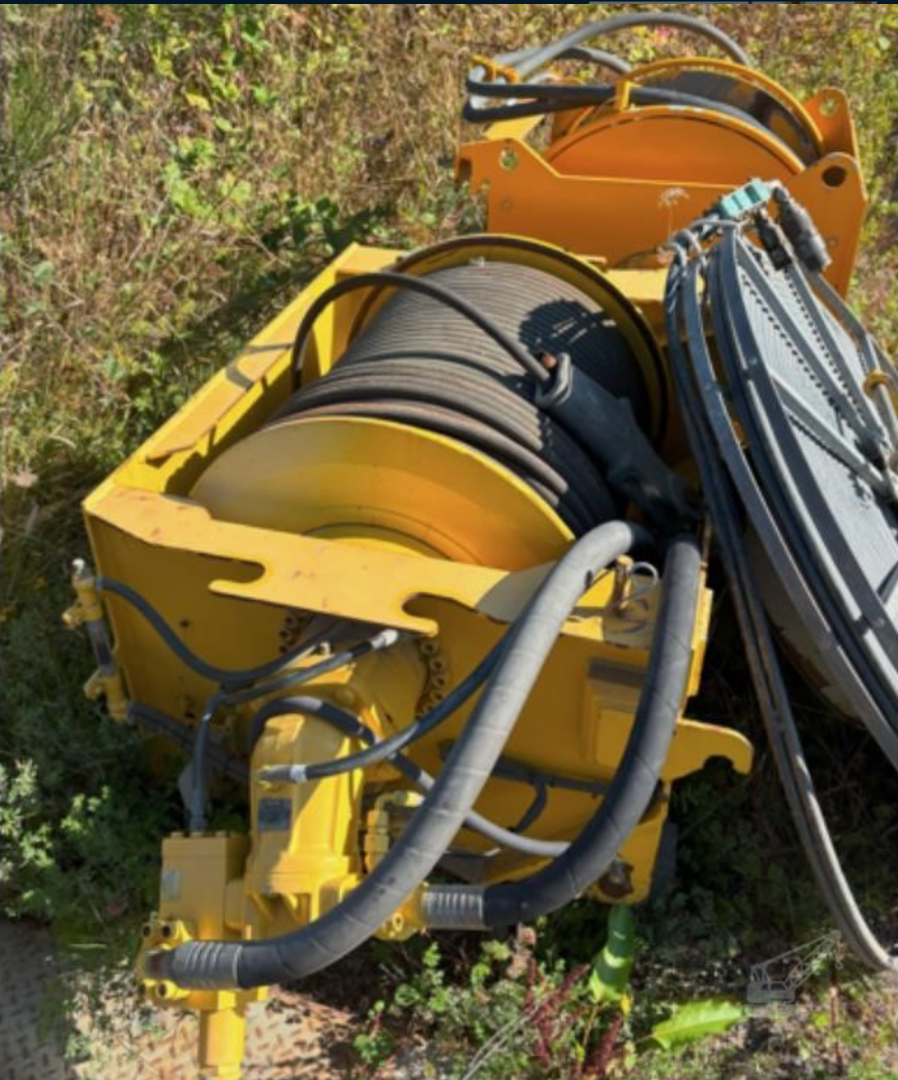

  • Main and Auxiliary Winches with 22 mm Wire Rope,

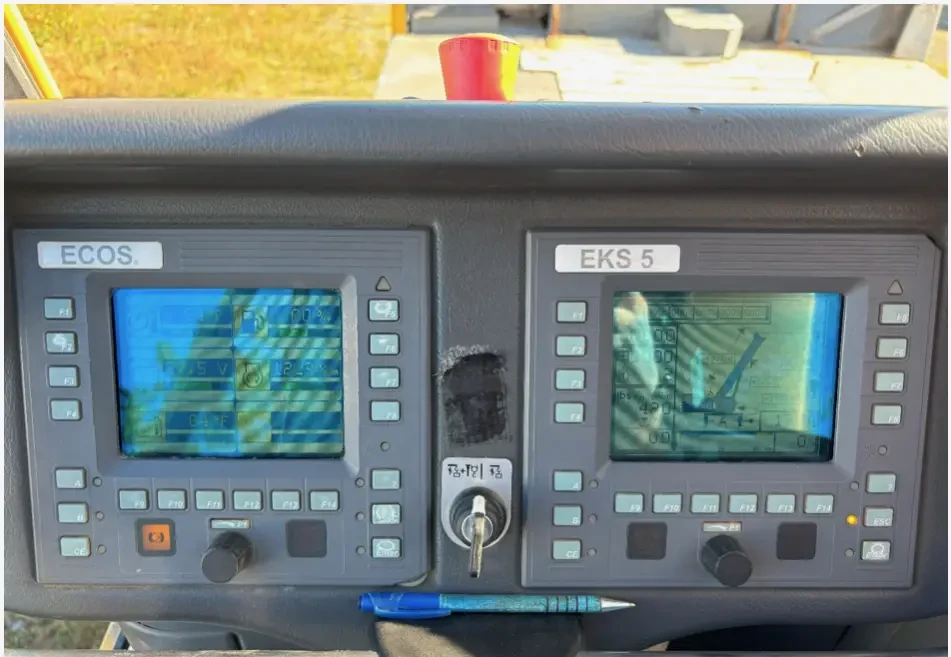

  • Drum Rotation Indicator, Load moment and anti-two block system with audio/visual warning and control lever lockout provides electronic display of boom angle, length, radius, tip height, relative load moment, maximum permissible load, load indication and warning of impending two-block condition,

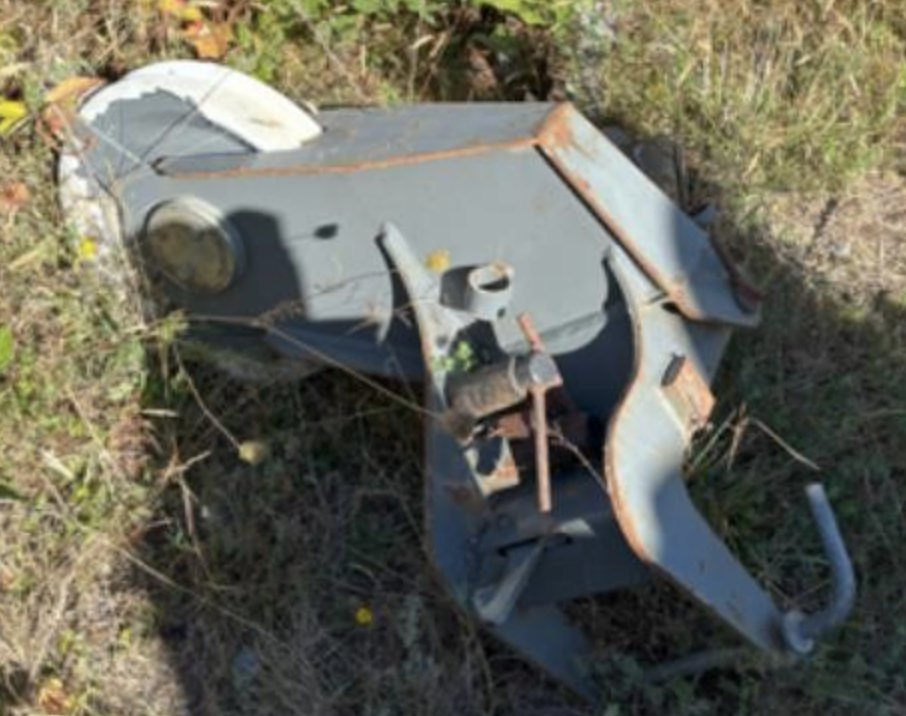

  • Single Sheave Hook Block,
  • Five Sheave Hook Block,
  • 169,700# Counterweights consisting of various sections with hydraulic installation/removal system controlled from the superstructure cab.

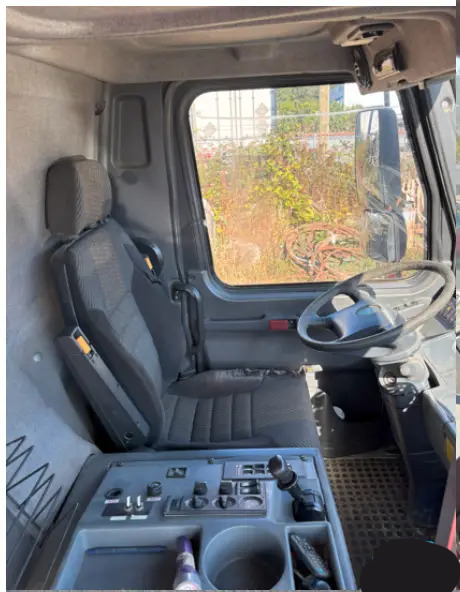

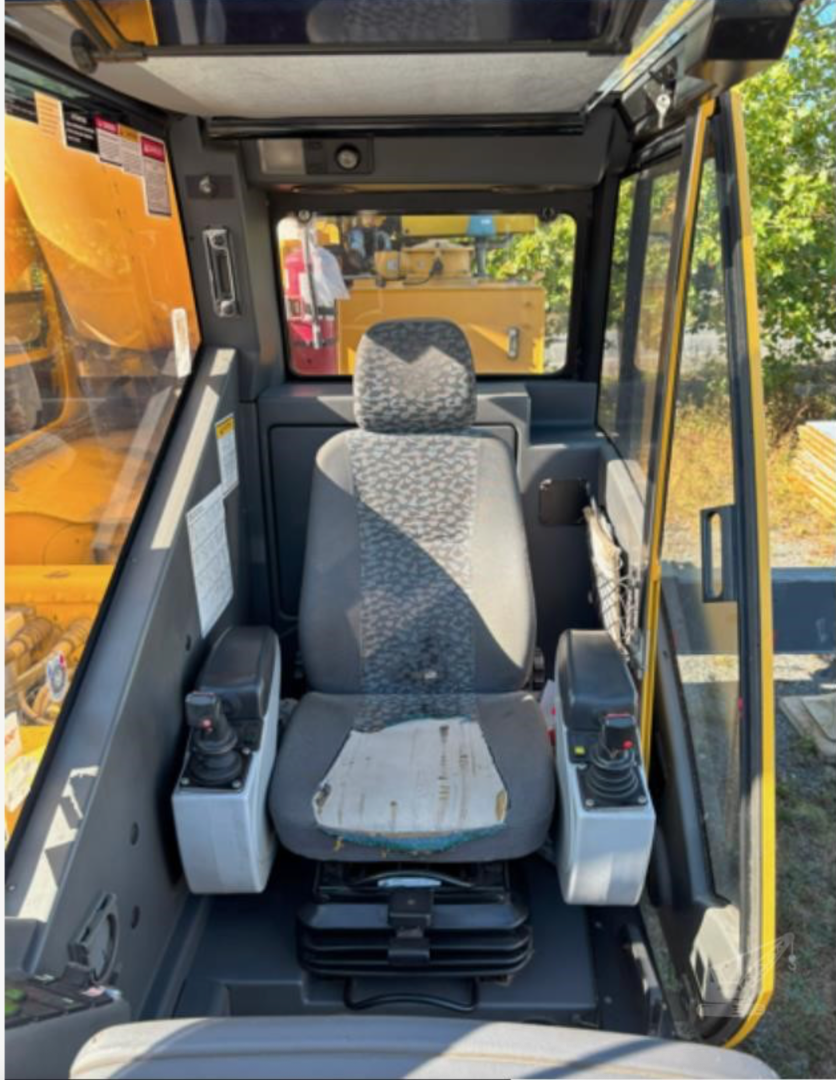

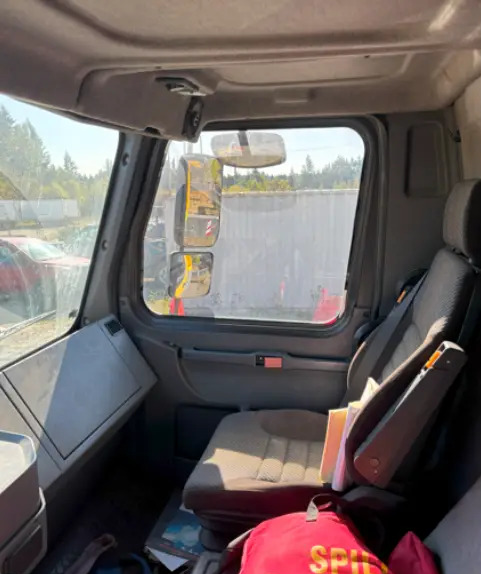

  • Air Conditioning and Heater in both cabs,
  • 10’ Wide, 10 x 8 x10 Drive/Steer Grove Carrier,

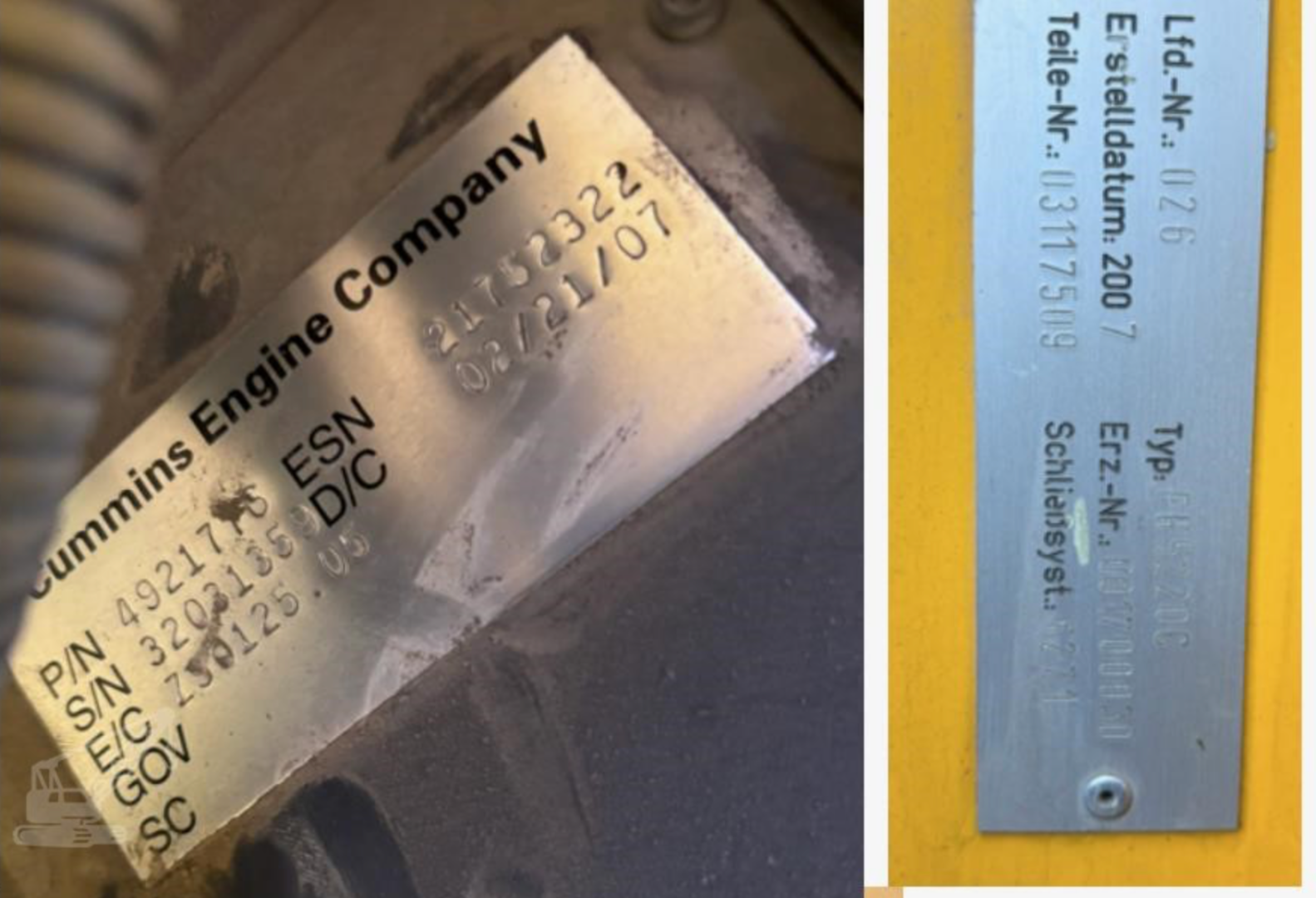

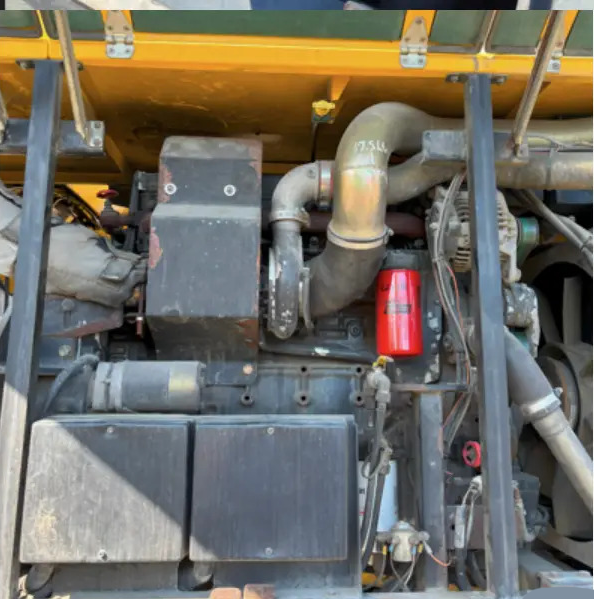

  • Cummins QSX, 525 HP, Diesel Engine,
  • Jake Brake,
  • Allison automatic 4000 SP, 6 speeds forward, 1 reverse 2 speed transfer case Transmission - AS PER GROVE SPECIFICATIONS AND SUBJECT TO FINAL CONFIRMATION,
  • Front and Rear Tires: 525/R25,
  • Grove exclusive MEGATRAK™ suspension. Independent hydro-pneumatic system acting on all wheels with hydraulic lockout.

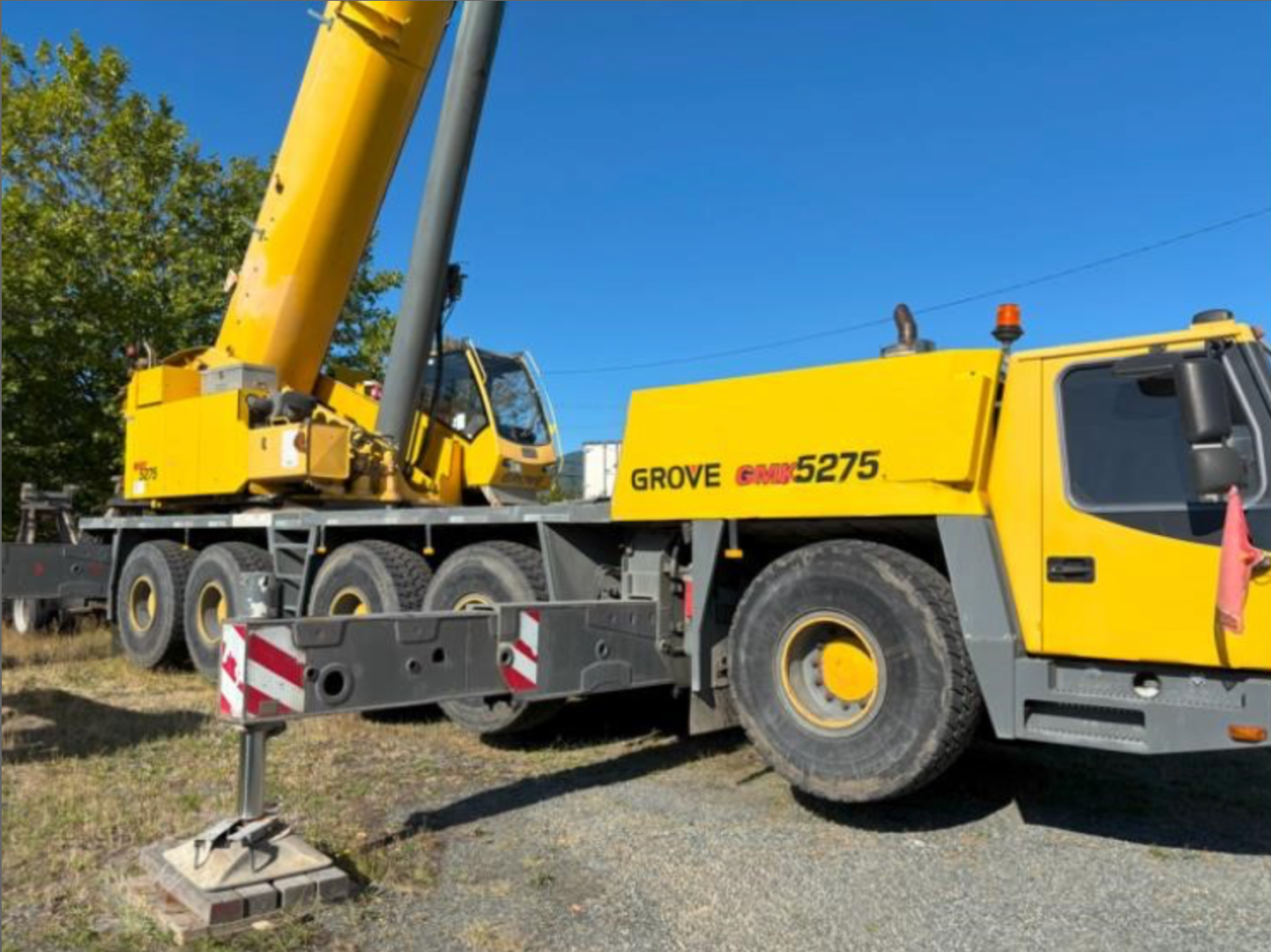

  • Outrigger System - Four hydraulic two stage outrigger beams with vertical cylinders and outrigger pads, 600 mm (23.6 in) square. Outrigger can be set in 5 positions: Full: 8,1 m (26.6 ft) Partial: 6,8 m (22.3 ft)
    Partial: 5,6 m (18.4 ft) Partial: 4,4 m (14.4 ft)
    Retracted: 2,7 m (9.0 ft) Independent horizontal and vertical movement controlled from each side of carrier and the superstructure cab. Electronic crane level  indicators. Hydraulic disconnect for all outrigger beams,

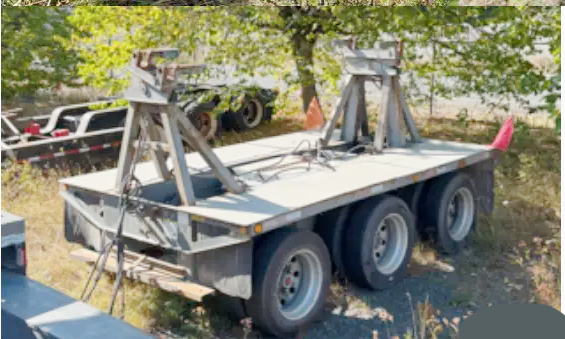

  • Nelson Tridem Dolly.

http://www.Craneszlist.com,

LOCATED IN EDMONTON, ALBERTA, CANADA!
